Creating DPTs
The keyword for the start of the type table is TypeName which must be in the first column. The following lines consist of a pair of values Name <Tab> Type. Names may be freely chosen and type constants are defined by the system (see appendix Data type integers).
Another group is indented with a tab.
Example
| Type Name | |||
| Station | 1 | ||
| Temperatures | 1 | ||
| Temp_1 | 22 | ||
| Temp_2 | 22 | ||
| Fault | 23 |

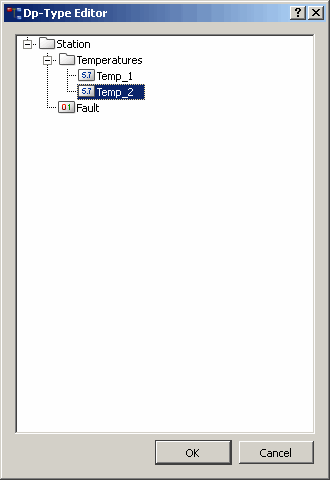

If you input this table as an ASCII file, the following data point type is created.
