SVG Image

[jjang@gtd.eu]

Hi all,

I'm trying to use .svg format images in WinCC OA. I can fill the pushbutton with the image that I want by dragging (so nice).

But, when the color of the image is "white" with "transparent" background, it automatically changes to black and the size. I don't know why.

It only happens with "white" images, not other colours.

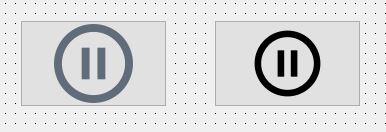

I will attach an example of 2 pushbuttons with 2 different svg images (1 same image but 2 different colour) but with the same resolution.

Pd: I'm using WinCC OA 3.16 P015 in Windows 10.

Thank you ;D

[leoknipp]

I had a look at the description.
What is meant with the following statement: the image that I want by dragging?

Can you please attach the SVG images you are using. Then we can do a similar test.

Best Regards
Leopold Knipp
Senior Support Specialist

[jjang@gtd.eu]

I mean, you can drag the image from the "Project View" window to the pushbutton to configure it.

I realised that if the color is 100% "white" (RGB = 255,255,255) causes error..

I have attached 3 different examples of the same image (Green, Red, White).

Thank you

[jjang@gtd.eu]

Oh... I can't attach SVG image... what is your email address?

[leoknipp]

In that case please get in contact with your common WinCC OA support.
Then it is easier to share data which is needed for the analysis.

Best Regards
Leopold Knipp
Senior Support Specialist
