Docker Support

An introduction on how to use WinCC OA within a Docker container, what specifics must be considered and where to find further information on the topic.

What is Docker?

Docker serves as an innovative platform designed to streamline the entire lifecycle of software applications, from development to deployment and execution. It achieves this by utilizing 'containers'—self-contained, isolated units that neatly package an application along with all its essential components, such as code, libraries, and configurations. This elegant solution offers a distinct advantage over traditional methods or resource-intensive virtual machines, as containers are remarkably lightweight and guarantee consistent application performance across diverse computing environments, thereby significantly enhancing reliability and efficiency.

Docker Image

A Docker image is a standardized, portable software package that contains an application along with its runtime, libraries, and dependencies. It serves as a foundational template for deploying containers in consistent and isolated environments. While WinCC OA currently lacks an official Docker image, custom solutions can be created by extracting Debian packages and configuring Docker files:

docker build -t winccoa321. #Executed in the local directory.
#You must download the Debian packages before executing this command

Future support for patch-based images is planned to enhance deployment efficiency.

Example: To load a PostgreSQL® image from GIT hub:

docker pull postgres:16

Container Management and Licensing

Docker container management allows applications like WinCC OA to be run in isolated, configurable environments. Containers can be started, stopped, inspected, and accessed via graphical tools like Portainer or through command-line commands. Key functions include viewing logs, opening terminal sessions, and forwarding network ports for web access. Licensing is handled dynamically: the container connects to a license server defined by an environment variable. If multiple license containers exist, the correct one must be specified in the project configuration using a serial number. This ensures the application runs with a valid license and without warnings. Persistent data can be maintained by mounting external volumes.

Note:

For licensing within a docker container, a stand-alone CodeMeter license server is required.

The CodeMeter license server can either be running on a separate server or as service on the host machine which provides the Docker environment.

A CodeMeter license server requires the installation and corresponding server configuration of the CodeMeter runtime. The runtime is provided as part of the setup or can be downloaded, for Linux only, from www.winccoa.com or directly from the vendor website http://www.wibu.com.

http://www.wibu.com also provides extensive descriptions for the configuration of a CodeMeter license server.

Use one of the following options to start the container with the created Docker image.

Important:

You must make sure, that the project is mounted into the correct directory.

By default, the path home/winccoa/oaproj/ is used. To specify a different path, use the optional argument -e OAPROJ= of the docker run command and mount a volume with -v parameter.

Use the optional -p argument of the docker run command to map all necessary ports for your project to the Docker container.

Option 1: Run it manually:

docker run --rm --name Demo -p 8443:8443 -e OAPROJ=/opt/WinCC_OA/3.20/DemoApplication_3.20_mount -e LICENSESERVER=<IP from License server e.g. 172.28.224.1> -v /mnt/c/WinCC_OA_Proj/DemoApplication_3.20:/opt/WinCC_OA/3.20/DemoApplication_3.20_mount winccoa320_4

Replace the license server placeholder in the command with your server’s IP address (for example, 172.28.224.1).

Option 2: Use Docker Compose with a YAML file:

docker compose -f docker-compose_0.yml up

#YAML FILE:
#docker run -d --rm --name winccoa -p 8443:8443 -e OAPROJ=/opt/WinCC_OA/3.20/DemoApplication_3.20_mount -e LICENSESERVER=172.28.224.1 -v /mnt/c/WinCC_OA_Proj/DemoApplication_3.20:/opt/WinCC_OA/3.20/DemoApplication_3.20_mount winccoa320

services:
  Demo: #name
    image: winccoa320_4 #image name
    container_name: Demo
    volumes:
      - /mnt/c/WinCC_OA_Proj/DemoApplication_3.20:/opt/WinCC_OA/3.20/DemoApplication_3.20_mount
    environment:
      - OAPROJ=/opt/WinCC_OA/3.20/DemoApplication_3.20_mount
      - LICENSESERVER=172.28.224.1
    ports:
      - 8443:8443

Running multiple Containers

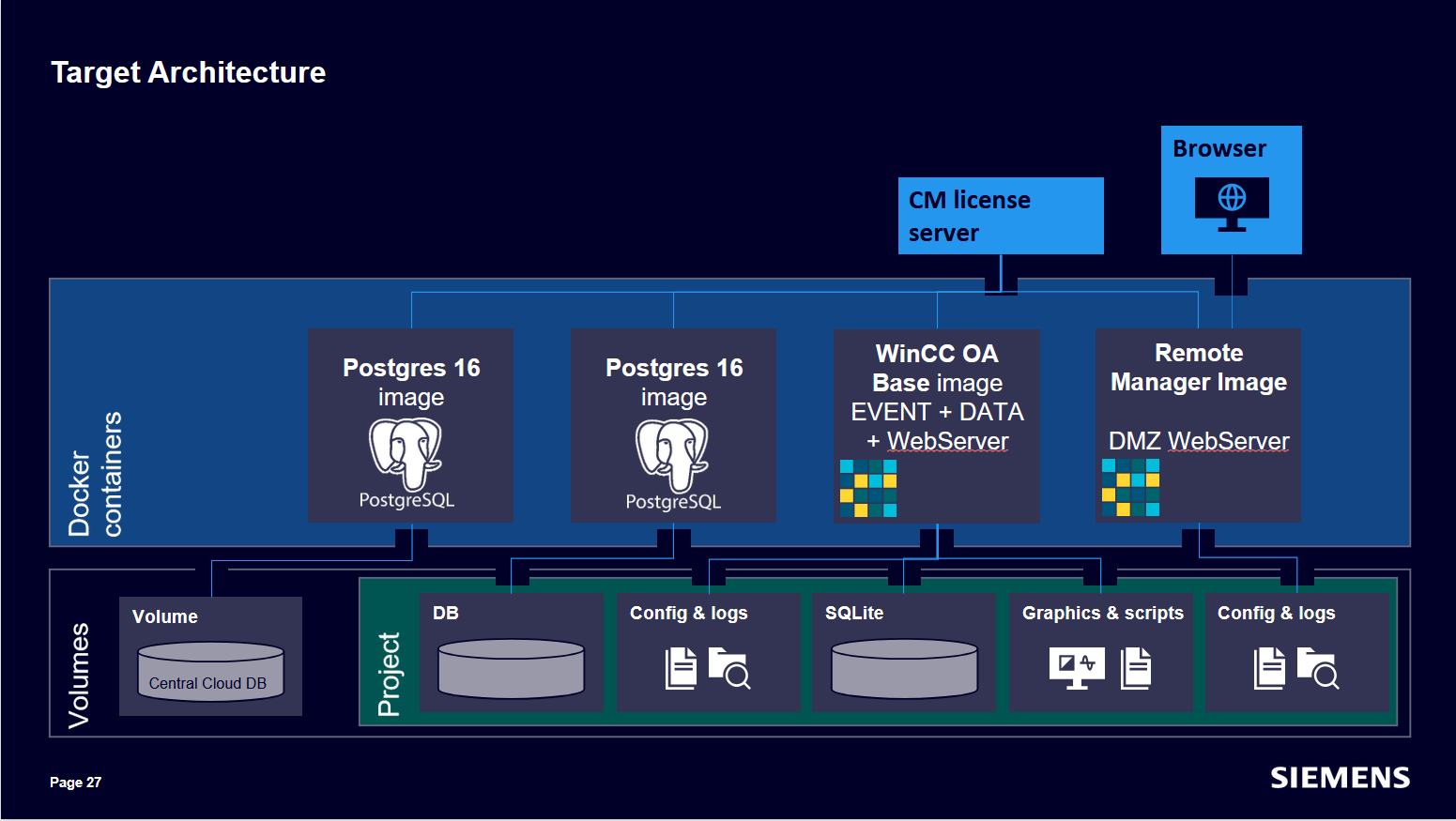

Figure 1. Docker Architecture - This architecture image is only an example, and the commands in this chapter match this exact configuration

//Starting Docker Compose
docker compose -f docker-compose.yml up

Managing multiple Docker containers is best done using Docker Compose, which allows defining services, volumes, networks, and environment variables in a single YAML file. This approach ensures consistent configuration and simplifies deployment. In a typical setup, containers for WinCC OA, PostgreSQL® (local and cloud), and a remote web server are orchestrated together. Each service is configured with its own image, ports, and volumes (To have the whole project source in a single directory, the project mounts different config and log folders into the Docker containers), enabling modular and scalable architecture. Data persistence is ensured through mounted volumes, and environment variables are used to configure licensing and connectivity. The architecture supports distributed archiving by connecting multiple PostgreSQL® instances and defining archive groups. A remote manager container in the DMZ acts as a secure interface for external access, using a minimal project structure and dedicated config and log folders. Docker Compose commands like up and down as well as --force-recreate manage the lifecycle of containers, while port mapping and service separation ensure secure and efficient communication between components.

The following example shows a progressive configuration:

Step 1 (local application): WinCC OA and PostgreSQL® run in a single Docker container (the entire project in one container)

services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
      - 8449:8449 #webSocket (dashboard server)
      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw

Step 2: Add a remote PostgreSQL® instance (configuration of the database, archive settings and archive groups is required, as shown in the video)

services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
      - 8449:8449 #webSocket (dashboard server)
      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata

Step 3: Add a second PostgreSQL® database in a separate Docker container (configuration of the database, archive settings and archive groups is required, as shown in the video):

services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
      - 8449:8449 #webSocket (dashboard server)
      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata
  postgresCloud: #name
    image: postgres:16
    container_name: postgresCloud
    volumes:
      - postgresCloudDBFolder:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=etm#123
      - PGDATA=/var/lib/postgresql/data/pgdata
volumes:
  postgresCloudDBFolder:

Step 4: Add a remote web server

services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
#      - 8449:8449 #webSocket (dashboard server)
#      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  webserver: #name
    build: ../../remoteManager_320_4
    image: winccoa_remote320_4 #image name
    container_name: webserver
    volumes:
      - ./dockerExample_ED/web_config:/opt/WinCC_OA_proj/remote/config
      - ./dockerExample_ED/web_log:/opt/WinCC_OA_proj/remote/log
      - ./dockerExample_ED/data:/opt/WinCC_OA_proj/remote/data #webserver files
    environment:
      - EMPTYPROJ=/opt/WinCC_OA_proj/remote
      - OAPROJ=/opt/WinCC_OA_proj/remote
    ports:
      - 9449:8449 #webSocket (dashboard server)
      - 9843:8843 #webServer https://localhost:8879/#/login?dbrw  https://localhost:8843/#/login?dbrw
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata
  postgresCloud: #name
    image: postgres:16
    container_name: postgresCloud
    volumes:
      - postgresCloudDBFolder:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=etm#123
      - PGDATA=/var/lib/postgresql/data/pgdata
volumes:
  postgresCloudDBFolder:

YAML Change for multiple containers:
YAML whole File

#      - 8449:8449 #webSocket (dashboard server)
#      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
webserver: #name
build: ../../remoteManager_320_4
image: winccoa_remote320_4 #image name
container_name: webserver
volumes:
  - ./dockerExample_ED/web_config:/opt/WinCC_OA_proj/remote/config
  - ./dockerExample_ED/web_log:/opt/WinCC_OA_proj/remote/log
  - ./dockerExample_ED/data:/opt/WinCC_OA_proj/remote/data #webserver files
environment:
  - EMPTYPROJ=/opt/WinCC_OA_proj/remote
  - OAPROJ=/opt/WinCC_OA_proj/remote
ports:
  - 9449:8449 #webSocket (dashboard server)
  - 9843:8843 #webServer https://localhost:8879/#/login?dbrw  https://localhost:8843/#/login?dbrw


services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
#      - 8449:8449 #webSocket (dashboard server)
#      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  webserver: #name
    build: ../../remoteManager_320_4
    image: winccoa_remote320_4 #image name
    container_name: webserver
    volumes:
      - ./dockerExample_ED/web_config:/opt/WinCC_OA_proj/remote/config
      - ./dockerExample_ED/web_log:/opt/WinCC_OA_proj/remote/log
      - ./dockerExample_ED/data:/opt/WinCC_OA_proj/remote/data #webserver files
    environment:
      - EMPTYPROJ=/opt/WinCC_OA_proj/remote
      - OAPROJ=/opt/WinCC_OA_proj/remote
    ports:
      - 9449:8449 #webSocket (dashboard server)
      - 9843:8843 #webServer https://localhost:8879/#/login?dbrw  https://localhost:8843/#/login?dbrw
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata
  postgresCloud: #name
    image: postgres:16
    container_name: postgresCloud
    volumes:
      - postgresCloudDBFolder:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=etm#123
      - PGDATA=/var/lib/postgresql/data/pgdata
volumes:
  postgresCloudDBFolder:

Health Check

Docker health checks enable containers to report their readiness status. By integrating a health check script for the WinCC OA service, dependent containers like a remote web server can delay startup until the service is healthy. This ensures reliable orchestration and prevents premature connection attempts in Docker Compose environments.

//dockerHealthCheck.ctl allows you to use the command:
system health state

YAML Change for the health check:
YAML whole File


depends_on:
winccoa:
condition: service_healthy
stop_grace_period: 2m


services:
  winccoa: #name
    build: ../../WinCCOA_320_4
    image: winccoa320_4 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
#      - 8449:8449 #webSocket (dashboard server)
#      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  webserver: #name
    build: ../../remoteManager_320_4
    image: winccoa_remote320_4 #image name
    container_name: webserver
    volumes:
      - ./dockerExample_ED/web_config:/opt/WinCC_OA_proj/remote/config
      - ./dockerExample_ED/web_log:/opt/WinCC_OA_proj/remote/log
      - ./dockerExample_ED/data:/opt/WinCC_OA_proj/remote/data #webserver files
    environment:
      - EMPTYPROJ=/opt/WinCC_OA_proj/remote
      - OAPROJ=/opt/WinCC_OA_proj/remote
    ports:
      - 9449:8449 #webSocket (dashboard server)
      - 9843:8843 #webServer https://localhost:8879/#/login?dbrw  https://localhost:8843/#/login?dbrw
    depends_on:
      winccoa:
        condition: service_healthy
    stop_grace_period: 2m
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata
  postgresCloud: #name
    image: postgres:16
    container_name: postgresCloud
    volumes:
      - postgresCloudDBFolder:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=etm#123
      - PGDATA=/var/lib/postgresql/data/pgdata
volumes:
  postgresCloudDBFolder:

Updating

Docker simplifies software updates by allowing seamless deployment of new images. For instance, updating WinCC OA involves building a new image via Docker Compose and restarting the setup. This approach ensures efficient patch application with minimal disruption, if the provided application is properly prepared for containerized deployment.

// start a build
docker compose -f docker-compose.yml build

Run with a new patch
docker compose -f docker-compose.yml up

YAML Change for the upgrade:
YAML whole File


build: ../../WinCCOA_320_6
image: winccoa320_6 #image name
build: ../../remoteManager_320_6
image: winccoa_remote320_6 #image name


services:
  winccoa: #name
    build: ../../WinCCOA_320_6
    image: winccoa320_6 #image name
    container_name: winccoa
    volumes:
      - ./dockerExample_ED:/opt/WinCC_OA_proj/dockerExample_ED
    environment:
      - OAPROJ=/opt/WinCC_OA_proj/dockerExample_ED
      - LICENSESERVER=172.28.224.1
    ports:
      - 127.0.0.1:4897:4897 #dataPort for remote GEDI/PARA
      - 127.0.0.1:4998:4998 #eventPort for remote GEDI/PARA
#      - 8449:8449 #webSocket (dashboard server)
#      - 8843:8843 #webServer https://localhost:8843/#/login?dbrw
  webserver: #name
    build: ../../remoteManager_320_6
    image: winccoa_remote320_6 #image name
    container_name: webserver
    volumes:
      - ./dockerExample_ED/web_config:/opt/WinCC_OA_proj/remote/config
      - ./dockerExample_ED/web_log:/opt/WinCC_OA_proj/remote/log
      - ./dockerExample_ED/data:/opt/WinCC_OA_proj/remote/data #webserver files
    environment:
      - EMPTYPROJ=/opt/WinCC_OA_proj/remote
      - OAPROJ=/opt/WinCC_OA_proj/remote
    ports:
      - 9449:8449 #webSocket (dashboard server)
      - 9843:8843 #webServer https://localhost:8879/#/login?dbrw  https://localhost:8843/#/login?dbrw
    depends_on:
      winccoa:
        condition: service_healthy
    stop_grace_period: 2m
  postgres: #name
    image: postgres:16
    container_name: postgres
    volumes:
      - ./dockerExample_ED/db/wincc_oa/localdb/postgresql/16:/var/lib/postgresql/data
    environment:
      - PGDATA=/var/lib/postgresql/data/pgdata
  postgresCloud: #name
    image: postgres:16
    container_name: postgresCloud
    volumes:
      - postgresCloudDBFolder:/var/lib/postgresql/data
    environment:
      - POSTGRES_PASSWORD=etm#123
      - PGDATA=/var/lib/postgresql/data/pgdata
volumes:
  postgresCloudDBFolder:
