Statistics

This tab provides statistical information on data sent and received. Any information applies to data values not messages.

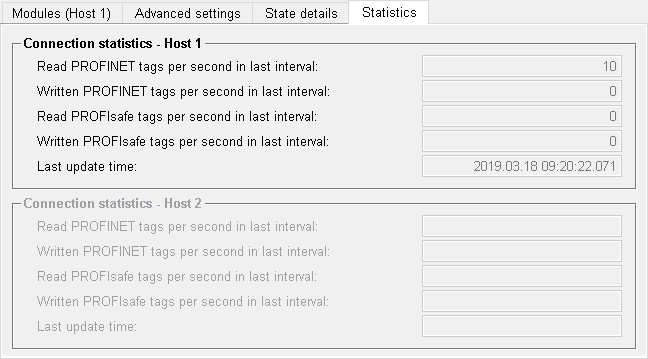

Connection statistics - Host 1 / Host 2

Following information is displayed for host 1 respective host 2:

Read PROFINET tags per second in the last interval
Written PROFINET tags per second in the last interval
Read PROFIsafe tags per second in the last interval
Written PROFIsafe tags per second in the last interval
Last update time
