Conversion Settings

This process converts an HDB archive configuration to an NGA archive configuration (value archives to NGA archive groups).

CAUTION: Before you migrate, stop the WinCC OA project.
Note: Note that historical data will not be converted.

To migrate an HDB configuration to an NGA configuration, proceed as follows:

  • If you update an older project, you must register it in the 3.19 Project Administration and run the upgrade process to version 3.19. Only after the update to version 3.19 the project is shown in the Project Administration.
  • Click on Change project properties in the Project Administration panel.

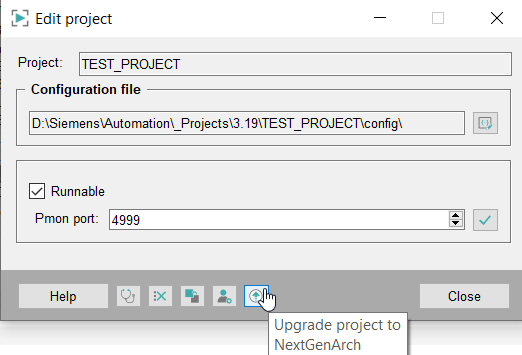

  • Click the Update project to NextGenArch button:
  • The Conversion panel - NGA migration is opened:

Migration Panel - NGA Migration

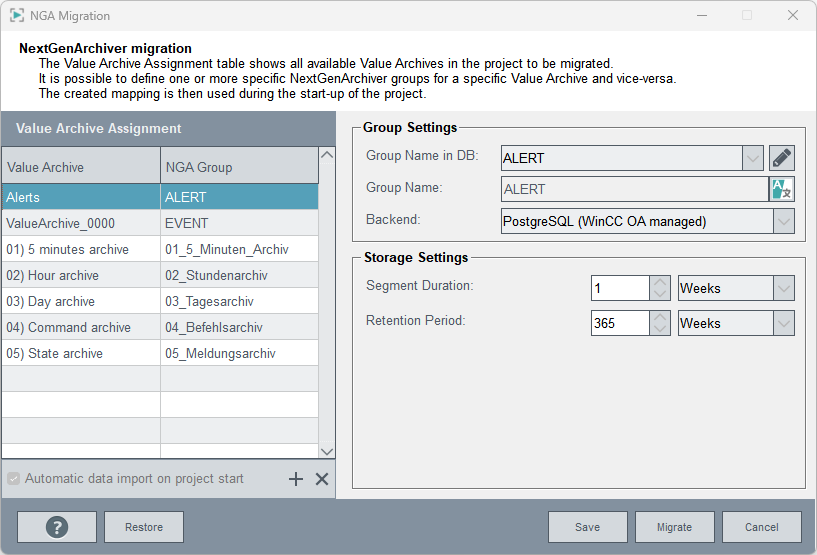

Figure 1. The Migration panel - NGA migration
CAUTION: Please make a backup of the database directory before the migration.

In the panel (see above) the value archives have corresponding default suggestions for the NGA groups. By default, the value archives are mapped "one-to-one" to NGA groups. This means that a 5 minutes archive is converted to a 5 minutes NGA group. By default, also the NGA group names are adapted to correspond to the names of the value archives.

Note: The value archives are converted to NGA groups as well as possible. However, all groups are not exactly the same as the value archives. E.g. a monthly group is always 31 days in the NGA. In the HDB, however, it can be 28 to 31 days.
  1. One value archive can be mapped to one or more different NGA groups or to no NGA group.
    Note: If you do not map a value archive to an NGA group, the archive configs (referring to this value archive) will be deleted during the migration.
  2. One or more HDB groups can be mapped to one NGA group.

You can select how to map the value archives to NGA groups freely. The Default mapping is "one-to-one".

  • When you have configured the mapping for the HDB groups to the NGA groups, click on Save. If you want to create new groups, click the + button - see the description below.
    CAUTION:

    In the panel you configure the mapping between the value archives and the NGA groups. The project is, however, not yet changed.

    Once you migrate, the project is changed. Migrate ONLY if you ARE SURE about your changes.

  • To convert the value archives to NGA groups, click on Migrate.

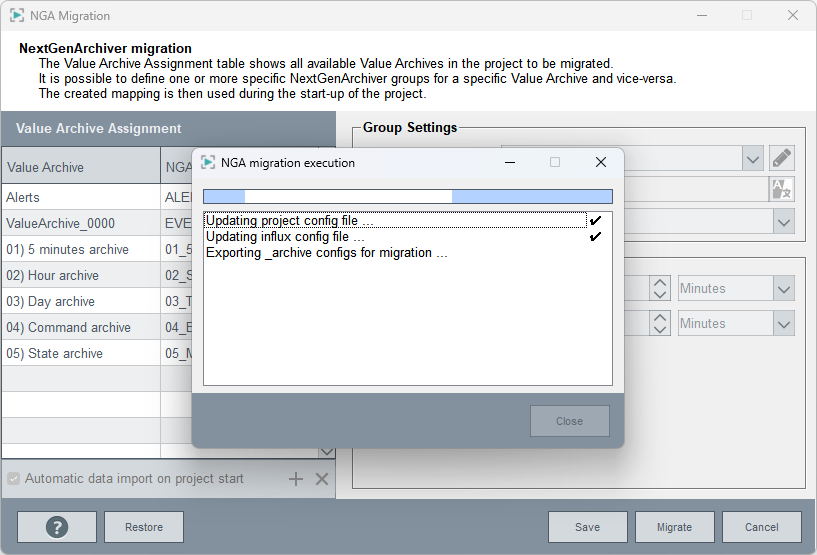

    Figure 2. NGA Migration - Conversion

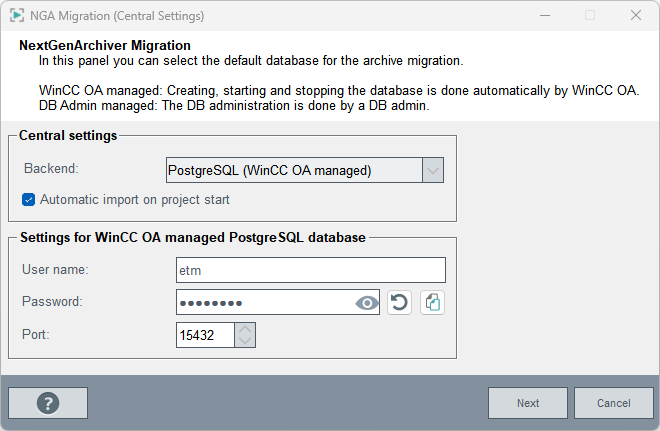

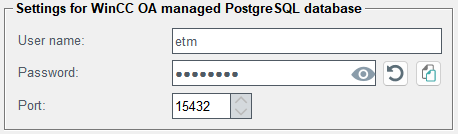

    The check box Automatic import on project start starts the NGA Import automatically and the necessary data points are automatically created.

    Note:

    The migration process will be completed only after starting the WinCC OA project. Conversion messages are shown in the log viewer of the project and saved in the InstallPath/log/PVSS_II.log. When the conversion is finished, the "WCCOActrl (1), 2022.11.15 11:36:27.336, SYS, INFO, 0, , _archive configs successfully updated" message is written to the PVSS_II.log file.

    If the migration process fails, the following error message is shown: WCCOActrl (1), 2022.11.29 14:53:17.032, SYS, SEVERE, 0, , Problem during _archive conversion..

  • Start the WinCC OA project.
    Note: Note that the historical data will be imported in a later step.

Buttons

+ Opens the Create new assignment panel (Group settings and Storage settings) You can select the default groups or create new groups. By default predefined groups are available for all value archive groups. You can select how to map the value archives to NGA groups freely. The Default mapping is "one-to-one".

X removes the group assignment and the state of the NGA group is set to NOT ASSIGNED. This means that the archive configs of the data points assigned to this value archive will be deleted!

Restore always restores the one-to-one mapping of the value archives to NGA groups.

Save saves the current state. If you close the panel and reopen it, the last saved state is shown.
Note: All settings configured in the NGA migration panel such as the mapping of value archives and RAIMA alerts to NGA groups as well as group and storage settings are saved in a YAML file. The YAML file can be used as template to apply the value archive and RAIMA alert conversion settings to other projects easily. Note that the template is intended for advanced users only and only if you want to easily apply the conversion settings to other projects. For the description of the file, see chapter NGA archive conversion - Deployment of multiple systems.

Migrate converts an HDB project to an NGA project.
