Requirements and Installation

Requirements and instructions for the installation of the Desktop UIs.

Requirements

Following requirements must be matched to use the WinCC OA Desktop UI:

  • A valid Desktop UI installation on the client machine. Installation can either be performed via Manual distribution or HTTP server distribution.
  • Valid licenses for the WinCC OA UI are required to use the WinCC OA Desktop UI.
    Important:
    For the WinCC OA Licensing of the Desktop UI on Linux platforms, install the CodeMeter rpm package located in the data/clsetup directory. After you connect to the server, you can download the package.
  • A running WinCC OA HTTP Server started with the "webclient_http.ctl" CTRL script.

Installation

  • To install the Desktop UI, you need to install the "Standard UI" and "Desktop UI shortcut" options of the WinCC OA setup which can be either be distributed manually to your client device or via the HTTP server distribution.
  • To install the required HTTP server you just add a new CTRL manager to your project, add "webclient_http.ctl" as parameter to it and start the manager. By default, your HTTP server is now accessible via the IP or host name (DNS or hosts file entry required) and the default ports on Windows are 80 (no SSL) or 443 (SSL). However, ports < 1024 are not available for non-root users on Linux systems. Therefore, the ports 8080 (no SSL) and 8079 (SSL) are used by default when a non-root user starts the manager. For more details on setting up your HTTP server, see chapterHTTP Server.
    Tip:
    Please note that by default only the HTTPS port can be used for the Desktop UI. To also use the unencrypted HTTP port the config entry [httpServer] strictTransportSecurityMaxAge must be set to 0.
  • In order to use the HTTP server authentication, add the [webClient] httpAuth=1 config entry. Open the project selection of the desktop UI via Start menu -> WinCC OA Desktop UI 3.20x64 and specify a user in the panel Projects. If a user was specified, a login dialog is not shown. If a user is not specified, a login dialog is shown.
Note:
mxProxy config entry in projects with DesktopUI Client:

If the mxProxy config was not specified, an automatic default entry will be used.

If you specified the mxProxy config entry manually, this will be used. Note that also the data and event entries are automatically set. Therefore, check that the server of your data and event entries matches the server of your manually specified mxProxy entry.

CAUTION! Note that although the mxProxy config entry would be set to "none", you must still start the Multiplexing Proxy in your project!

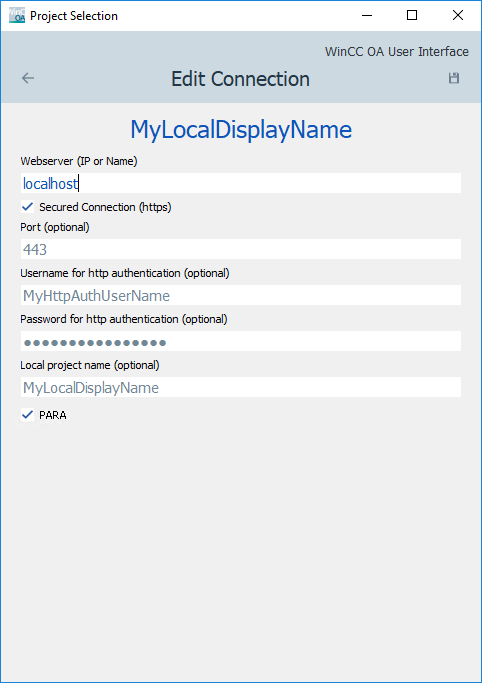

Figure 1. Desktop UI - Edit connection - specify Username for httpAuthentication (optional)
  • You can change the images shown for the Desktop UI. The images can be changed in the directory wincc_oa_path/DesktopUI/<version>/data/webClient . The following figure shows the images that can be changed. Replace the images with your own images.
Figure 2. Images that can be changed

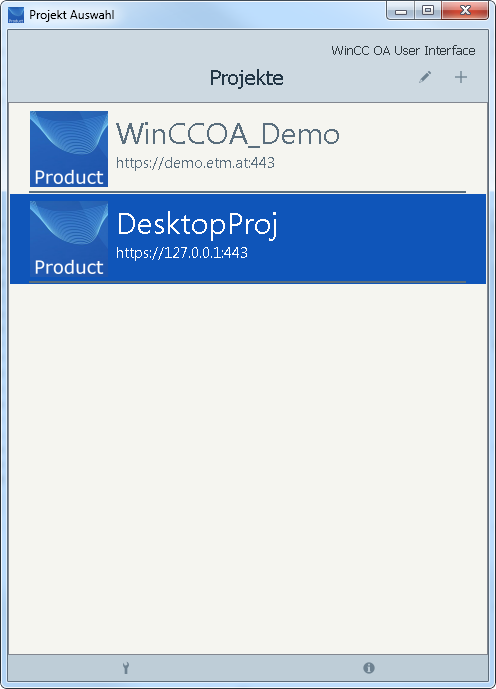

Figure 3. Project selection and customer-specific images

Manual distribution

The required package for each supported desktop operating system are part of their respective installation packages. The packages must be manually copied to your client machine and the installation must be performed similar to the regular WinCC OA setup.

The packages that must be installed to make the Desktop UI available on your device are for Windows: "Standard UI" and "Desktop UI shortcut"; and for Linux: "BaseUI" and "DesktopUIShortcuts".

HTTP server distribution

Starting with WinCC OA version 3.20, the HTTP server distribution has been disabled by default and requires to manually copy the necessary Desktop UI installation packages into the /data/clsetup/ directory of your project (where the web server is located) or WinCC OA installation directory.

The installation files need to use following correct names and correct subfolder depending on the operating system:

<operating system architecture>/WinCC_OA_<Version with Patch Level>_Desktop_UI_<architecture>.<package file ending>
  • Windows: windows-64/WinCC_OA_<version with patch>_Desktop_UI_x64.exe (e.g. WinCC_OA_Desktop_UI_3.20.0_x64.exe)
  • Debian: linux-debian-x86_64/WinCC_OA- <version with patch> -DesktopUI-debian.x86_64.zip
  • RHEL/CentOS: linux-rhel-x86_64/WinCC_OA- <version with patch> -DesktopUI-rhel.x86_64.zip

The necessary files can be downloaded from Desktop UI Download (winccoa.com) and already use the correct naming scheme and only need to be stored in the correct subfolder.

Restriction:
The Desktop UI standalone packages must not be installed on a device were WinCC OA is already installed and vice-versa, as they would directly interfere with each other.

Connect with your client device to the WinCC OA server project via web browser. A corresponding download page for the Desktop UI will be opened. Select the download package matching your client's operating system and install the downloaded package.

Note:
The web server needs to be running to download as well as use the Desktop UI.

RDP (Remote desktop protocol) support

As WinCC OA is platform agnostic (see the number of supported operating systems on the Software requirements page), the same operations can be performed via Remote Desktop with the Desktop UI as with the native WinCC OA UI. For technical details regarding RDP directly please refer to the respective OS vendors.
