"legendFont"

Defines the font of the legend.

Synopsis

void shape.legendFont(string font);

Parameters


Parameter	Description
font	font

Description

Defines the font of the legend.

Example

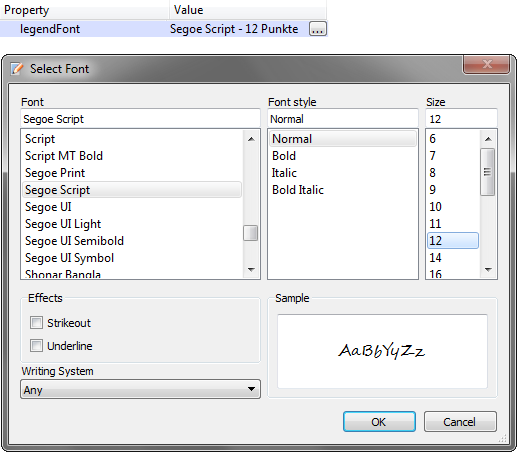

In the following example, the font of the legend was set to "Segoe Script" in the size 12.

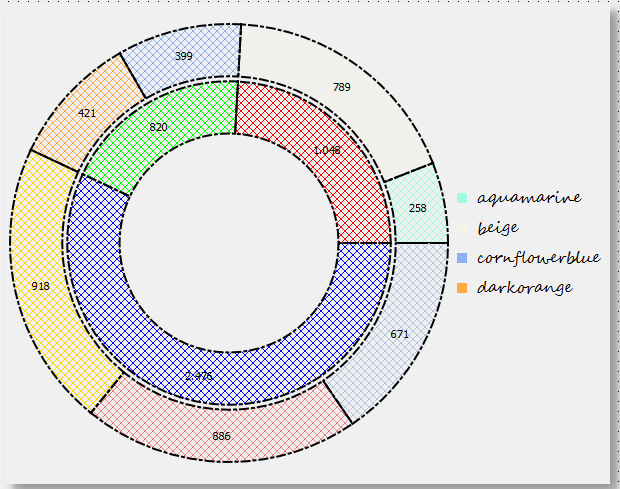

Figure 2. Donut-chart with a legend in the font "Segoe Script" in the size 12

Assignment

Chart.ewo
