"bubbleMaxSize"

Defines the maximum size of a bubble in pixel.

Synopsis

void shape.bubbleMaxSize(unsigned pixel)

Parameters


Parameter	Description
pixel	maximum size of a bubble in pixel

Description

Defines the maximum size of a bubble in pixel.

Example

The maximum size of the bubbles was set to 150 pixel.

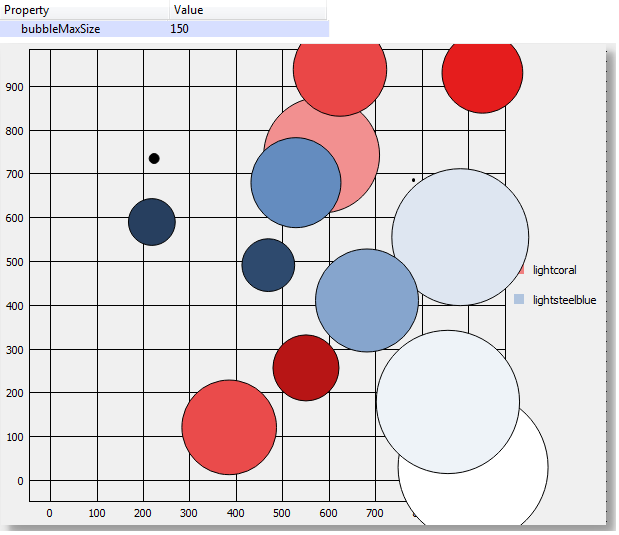

Figure 1. bubble-chart with a maximum size of the bubbles at 150 pixel

Assignment

Chart.ewo
