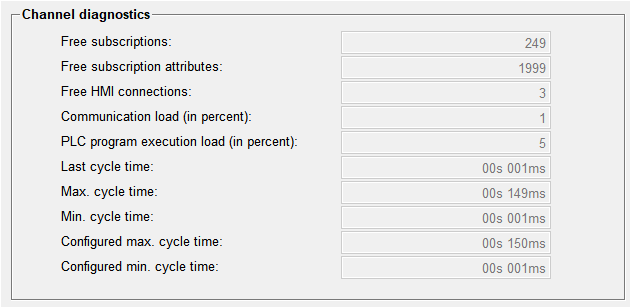

S7 Channel Diagnostic

The S7 Channel Diagnostic provides additional diagnostic information for the connections of the S7 Plus driver.

The information is stored on the internal datapoint element _7PlusConnection.State.Diagnostics

Note:

One subscription usually contains several attributes. For creating a subscription it is necessary that we have a free subscription and more or equal free subscription attributes, as attributes are contained in the subscription to create.

The Diagnostic values are stored within the internal datapoint element State.Diagnostic.

Note:

The option Free HMI Connections shows the amount of free connections that are reserved for communication with the HMI. Depending on the PLC unreserved connections can be used additionally.
