"getToolTip"

Synopsis

shape.getToolTip(string id, int column);

Parameters

Description

Returns the defined tooltip text of an item in a tree widget.

Example

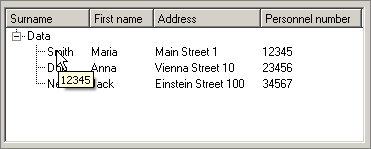

Shows the tooltip texts for the items of the first column (here, for example, the personnel number, see figure below),

main()
{
  //Adding three columns
  TREE1.addColumn("Surname");
  TREE1.addColumn("First name");
  TREE1.addColumn("Address");
  TREE1.addColumn("Personnel number");
  //Appending the item "Data"
  TREE1.appendItemNC("","DATA_","Data");
  //Appending three sub-items
  TREE1.appendItemNC("DATA_","SMITH","Smith");
  TREE1.setToolTip("SMITH", 0, "12345");
  TREE1.appendItemNC("DATA_","DOE","Doe");
  TREE1.setToolTip("DOE", 0, "23456");
  TREE1.appendItemNC("DATA_","NEWMAN","Newman");
  TREE1.setToolTip("NEWMAN", 0, "34567");
  //Setting texts in the column "First name"
  TREE1.setText("SMITH",1,"Maria");
  TREE1.setText("DOE",1,"Anna");
  TREE1.setText("NEWMAN",1,"Jack");
  //Setting texts in the column "Address"
  TREE1.setText("SMITH",2,"Main Street 1");
  TREE1.setText("DOE",2,"Vienna Street 10");
  TREE1.setText("NEWMAN",2,"Einstein Street 100");
  //Setting texts in the column "Personnel number"
  TREE1.setText("SMITH",3, TREE1.getToolTip("SMITH", 0));
  TREE1.setText("DOE",3, TREE1.getToolTip("DOE", 0));
  TREE1.setText("NEWMAN",3, TREE1.getToolTip("NEWMAN", 0));
}

Assignment

Tree widget
