Configuration of the Multiplexing Proxy

Local Client and Proxy

If the WCCILproxy is deployed on the same host as WCCILdata (=DataManager) and the WCCILevent (=EventManager) no additional configuration for SSL is needed, because defaults are generated from the values of the config file entries [general] data and [general] event.

Single System Configuration

The Proxy and the Server are deployed on the same host. The Client (on a separate host) communicates with the Server via the Proxy.

1. The client opens a connection to the Proxy and sends a message that tells the Proxy to open a connection to the DataManager.

2. The Proxy opens a connection to the DataManager and links this connection to the connection to the client.

3. The Proxy will send all messages received from the connection to the client to the DataManager and all messages received from the connection to the DataManager back to the client.

Opening the connection to the EventManager is done in the same way.

• 2 data and 2 alive connections to the DataManager

• 2 data and 2 alive connections to the EventManager

A client can open as many connections as needed. So, alive connections, not shown in the picture above, are tunneled via the Proxy too. In a ReduLAN configuration a client opens up to 8 connections:

Config File Entries

Server Configuration

No additional entries required.

Client Configuration

[general]

data="Server[:<dataPort>]"

event="Server[:<eventPort>]"

mxProxy="Server Server[:<proxyPort>] cert"

The configuration of <dataPort>, <eventPort> and <proxyPort> in the data, event and mxProxy configuration entries are optional. If the default port numbers are used, <dataPort>, <eventPort> and <proxyPort> are not necessary.

Remote Multiplexing Proxy

Often the Intranet of a company is considered secure and no communication encryption is required, but access from the Internet should be possible as well. There are many ways how an organization can expose its external-facing services to a larger and untrusted network, usually the Internet. A basic approach for this scenario is to simply place the Proxy behind a firewall into the DMZ.

The Multiplexing Proxy is no conventional manager and requires no DP-Identification. Therefore the config entries "data =" and "event =" inside the [general] section are not necessary for a remote proxy.

For such scenarios the default configuration is not possible, the Proxy and the client outside the company have to be configured manually.

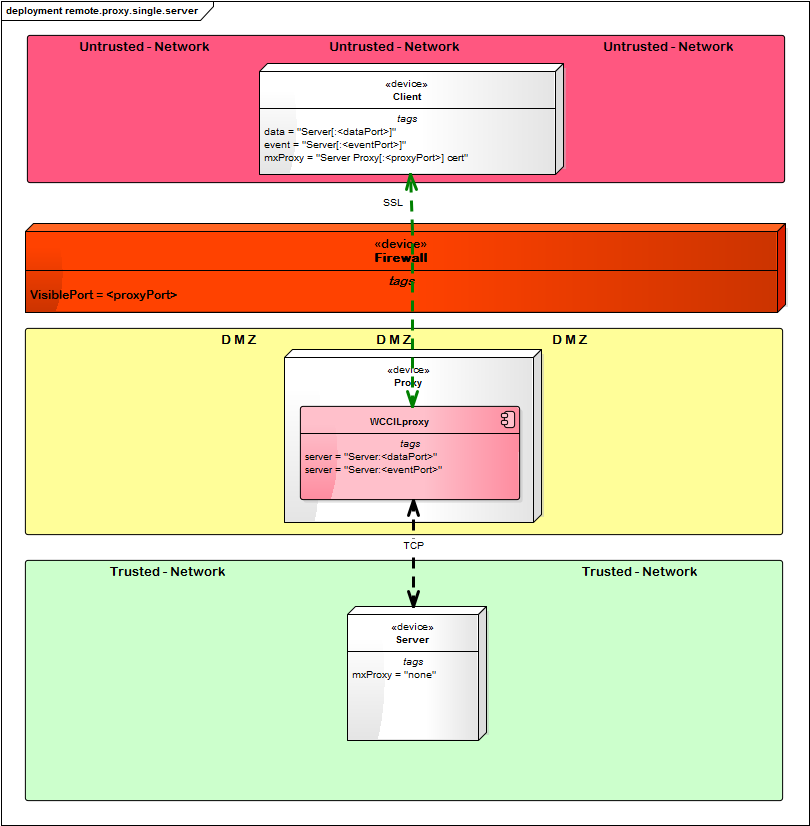

Remote Multiplexing Proxy - Single Server

SSL is disabled on all the hosts running in the intranet ([general] mxProxy = “none”), only the client in the internet and the Proxy are using SSL.

Config File Entries

Server Configuration

[general]

mxProxy="none"

Remote Multiplexing Proxy Configuration

[proxy]

server="Server:<dataPort>"

server="Server:<eventPort>"

The port numbers in the server configuration entries are mandatory even if the default port numbers are used for the DataManager and the EventManager.

Client Configuration

Note that when you are using a mobile device or the Desktop UI, enter the necessary config entries described below into the config.webclient file.

[general]

data="Server[:<dataPort>]"

event="Server[:<eventPort>]"

mxProxy="Server Proxy[:<proxyPort>] cert"

The configuration of <dataPort>, <eventPort> and <proxyPort> in the data, event and mxProxy configuration entries are optional. If the default port numbers are used, <dataPort>, <eventPort> and <proxyPort> are not necessary.

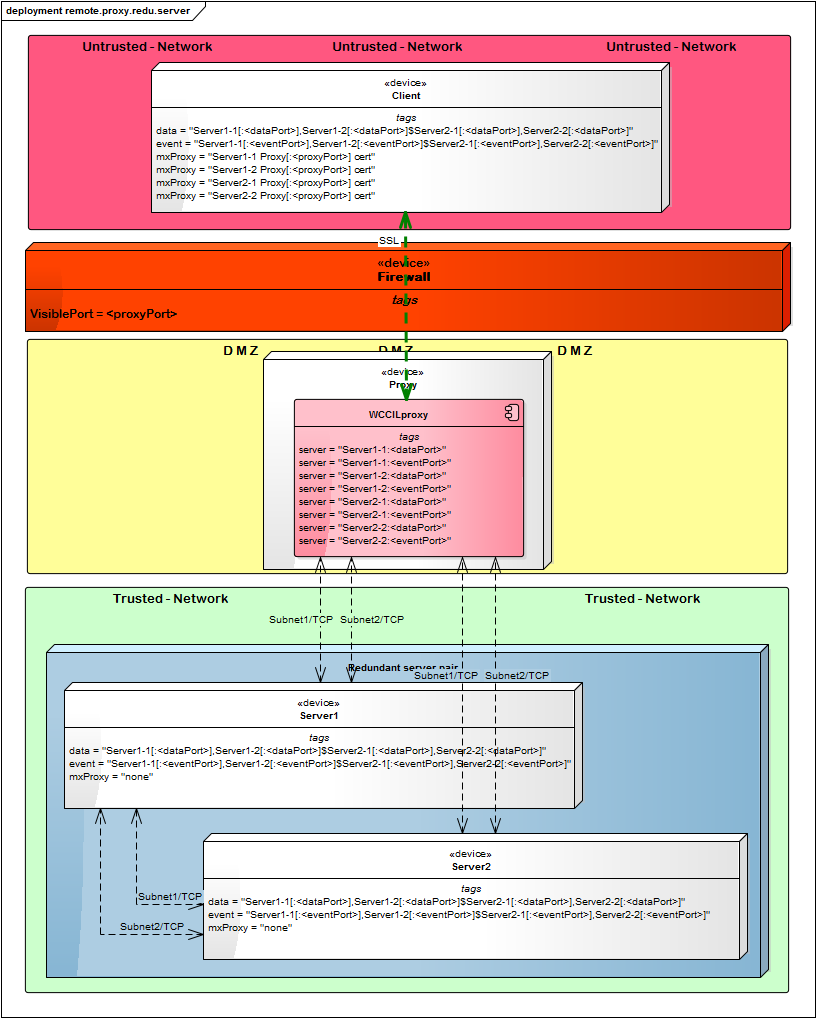

Remote Multiplexing Proxy - Redundant Server

Redundant Server Pair Configuration

[general]

data="Server1 1[:<dataPort>],Server1 2[:<dataPort>]$Server2 1[:<dataPort>],Server2 2[:<dataPort>]"

event="Server1 1[:<eventPort>],Server1 2[:<eventPort>]$Server2 1[:<eventPort>],Server2 2[:<eventPort>]"

mxProxy="none"

The configuration of <dataPort>, and <eventPort> in the data and event configuration entries are optional. If the default port numbers are used, <dataPort> and <eventPort> are optional.

Please note that the communication inside of the trusted network is not encrypted!

Remote Multiplexing Proxy Configuration

[proxy]

server="Server1-1:<dataPort>"

server="Server1-1:<eventPort>"

server="Server1-2:<dataPort>"

server="Server1-2:<eventPort>"

server="Server2-1:<dataPort>"

server="Server2-1:<eventPort>"

server="Server2-2:<dataPort>"

server="Server2-2:<eventPort>"

The port numbers in the server configuration entries are mandatory even if the default port numbers are used for the DataManager and the EventManager.

Client Configuration

[general]

data="Server1 1[:<dataPort>],Server1 2[:<dataPort>]$Server2 1[:<dataPort>],Server2 2[:<dataPort>]"

event="Server1 1[:<eventPort>],Server1 2[:<eventPort>]$Server2 1[:<eventPort>],Server2 2[:<eventPort>]"

mxProxy="Server1-1 Proxy[:<proxyPort>] cert"

mxProxy="Server1-2 Proxy[:<proxyPort>] cert"

mxProxy="Server2-1 Proxy[:<proxyPort>] cert"

mxProxy="Server2-2 Proxy[:<proxyPort>] cert"

The configuration of <dataPort>, <eventPort> and <proxyPort> in the data, event and mxProxy configuration entries are optional. If the default port numbers are used, <dataPort>, <eventPort> and <proxyPort> are not necessary.

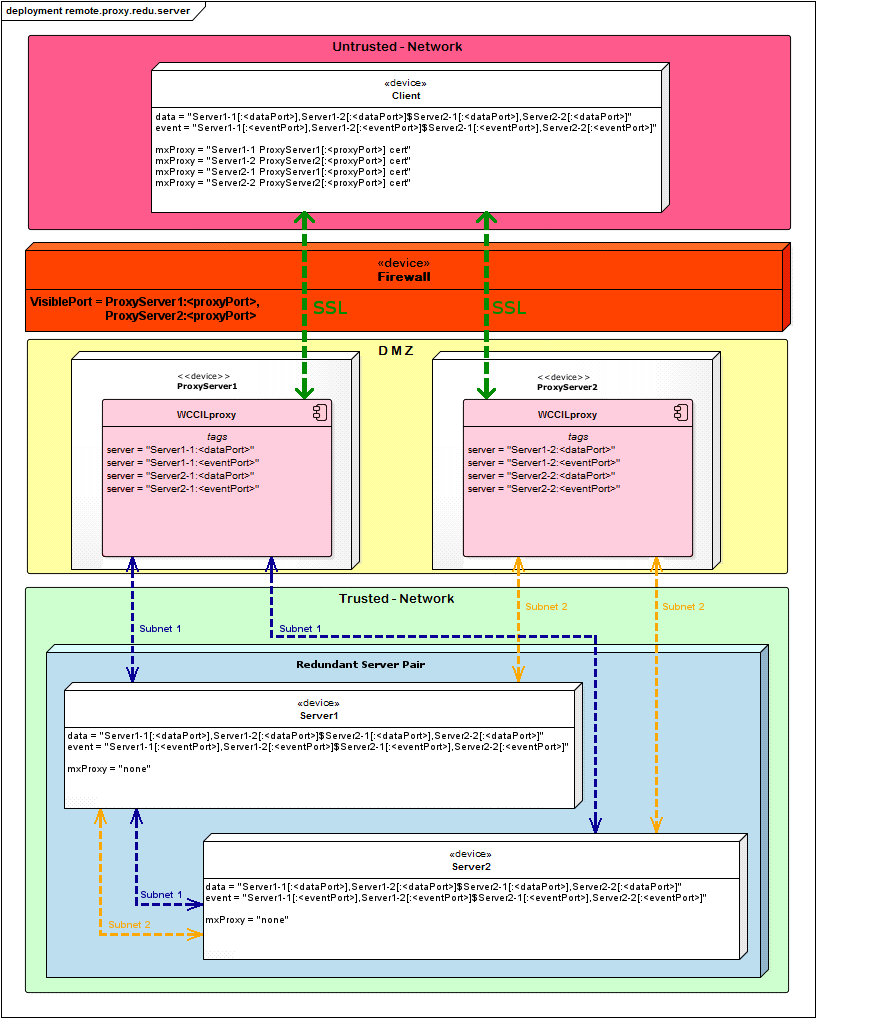

Remote Multiplexing Proxy - Redundant Server And Redundant Proxy

Note that when you are using a mobile device or the Desktop UI, enter the necessary config entries described below into the config.webclient file.

Redundant Server Pair Configuration

[general]

data="Server1-1[:<dataPort>],Server1-2[:<dataPort>]$Server2-1[:<dataPort>],Server2-2[:<dataPort>]"

event="Server1-1[:<eventPort>],Server1-2[:<eventPort>]$Server2-1[:<eventPort>],Server2-2[:<eventPort>]"

mxProxy="none"

The configuration of <dataPort>, and <eventPort> in the data and event configuration entries are optional. If the default port numbers are used, <dataPort> and <eventPort> are not necessary.

Please note that the communication inside of the trusted network is not encrypted!

Remote Multiplexing Proxy Configuration 1

[proxy]

server = "Server1-1:<dataPort>"

#server = "Server1-2:<dataPort>"

server = "Server2-1:<dataPort>"

#server = "Server2-2:<dataPort>"

server = "Server1-1:<eventPort>"

#server = "Server1-2:<eventPort>"

server = "Server2-1:<eventPort>"

#server = "Server2-2:<eventPort>"

Remote Multiplexing Proxy Configuration 2

[proxy]

#server = "Server1-1:<dataPort>"

server = "Server1-2:<dataPort>"

#server = "Server2-1:<dataPort>"

server = "Server2-2:<dataPort>"

#server = "Server1-1:<eventPort>"

server = "Server1-2:<eventPort>"

#server = "Server2-1:<eventPort>"

server = "Server2-2:<eventPort>"

The port numbers in the server configuration entries are mandatory even if the default port numbers are used for the DataManager and the EventManager.

Client Configuration

Note that when you are using a mobile device or the Desktop UI, enter the necessary "Client Configuration" config entries described below into the config.webclient file.

[general]

data="Server1-1[:<dataPort>],Server1-2[:<dataPort>]$Server2-1[:<dataPort>],Server2-2[:<dataPort>]"

event="Server1-1[:<eventPort>],Server1-2[:<eventPort>]$Server2-1[:<eventPort>],Server2-2[:<eventPort>]"

mxProxy="Server1-1 Proxy-1[:<proxyPort>] cert"

mxProxy="Server1-2 Proxy-2[:<proxyPort>] cert"

mxProxy="Server2-1 Proxy-1[:<proxyPort>] cert"

mxProxy="Server2-2 Proxy-2[:<proxyPort>] cert"

The configuration of <dataPort>, <eventPort> and <proxyPort> in the data, event and mxProxy configuration entries are optional. If the default port numbers are used, <dataPort>, <eventPort> and <proxyPort> are not necessary.

Multiplexing Proxy in a distributed System

For the configuration of the multiplexing proxy in a distributed system, you have to specify different config entries for the different systems. For an example see chapter Example on a Distributed System with different WinCC OA Versions.

How to establish a Connection to a user-specific WinCC OA Server Manager via Multiplexing Proxy

The WinCC OA multiplexing proxy establishes a connection to unblocked WinCC OA server managers. Some WinCC OA server Managers (Data Manager, Event Manager, Redu Manager, Split Manager) are unblocked by default.

The WCCILproxy can establish a connection since the proxy knows the default ports of the server or reads the changed port configuration from the config file. Since the WCCILproxy does not know how the client addresses the server, via host name or via IP address, the WCCILProxy generates not only a [proxy] server = entry per server but an entry for each host name and each IP address of the host.

For a host with 2 network interface cards, the WCCILproxy generates at least 5 [proxy]server = entries if redundant network is configured. An entry for the IP address of each network interface card.

server = "192.168.1.1:<dataPort>"

server = "192.168.2.1:<dataPort>"

- an entry for each host name of each IP address (see also redundant LAN naming convention)

for example,

server = "speedy:<dataPort>"

server = "speedy_1:<dataPort>"

server = "speedy_2:<dataPort>"

User-specific WinCC OA server managers must be unblocked manually for the Multiplexing Proxy since the multiplexing proxy does not know the default port or the server configuration. To access the customer-specific WinCC OA server managers via multiplexing proxy, the [proxy]server = entry must be created manually. In case of large plants where the project is configured by using Config file templates or for system integrators who create industry packages, this process is error-prone. This is due to the fact that the config files must be adapted for each host.

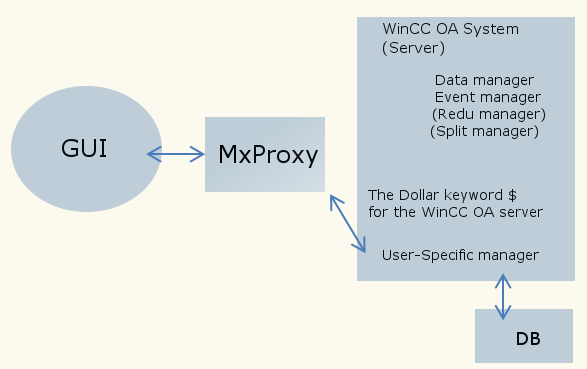

In order to speed up and facilitate the project work, WinCC OA offers the keyword $host. This keyword generates the necessary entries for the specific server (WinCC OA System). This entry informs the WCCILproxy that a customer-specific server exists and that it should create for this server the same defaults as for the managers unblocked by default,

In the following example for the server host "Speedy" with the server port 1234:

the WCCILproxy generates for the entry

[proxy]

server = "$host:1234"

- an entry for each IP address of each network interface card:

e.g.

[proxy]

server = "192.168.1.1:1234"

server = "192.168.2.1:1234"

- an entry for each host name of each IP address

e.g.

[proxy]

server = "speedy:1234"

server = "speedy_1:1234"

server = "speedy_2:1234“

Multiplexing Proxy under Linux

When the multiplexing proxy is used under Linux, the maximum number of clients connected via multiplexing proxy simultaneously, is limited.

The maximum number of file descriptors per process is 1024. You can set the number of available file descriptors for a process by using the shell command ulimit -n <number of file descriptors>. These limits are always taken into account.

The number of file descriptors in the multiplexing proxy for a single client connection:

• if the clients use single network connections the number is 8. (1 connection requires 8 file descriptors)

• if the clients use redundant network connections the number is 16. (1 connection requires 16 file descriptors)

If the alive supervision is used, this may also have an impact on this number. There is a certain reserve ofthe available file descriptors in the multiplexing proxy for other purposes like log files, standard input/output, etc.

Some typical Client scenarios:

Multiplexing Proxy and IPV6 Addresses

If an IPV6 address is used for the "server" and "mxProxy" entries, [ ] (square brackets) must be used:

[general]

mxProxy = "[::1] [::1]:5678 cert"

[proxy]

server = "[fe80::2c5c:5415:98f1:82f3]:1234"
