pmonGetPID()

The function pmonGetPID() returns the process ID of a WinCC OA manager.

Synopsis

int pmonGetPID(int idx);

Parameters

Parameter Description
idx The WinCC OA manager index. See chapter Details on the Pmon

Return value

The function pmonGetPID() returns the process ID of a WinCC OA manager or in the event of errors, -1.

Description

The function pmonGetPID() returns the process ID of a WinCC OA manager. A manager is started in the WinCC OA console and the PID is shown in the console - see figure below.

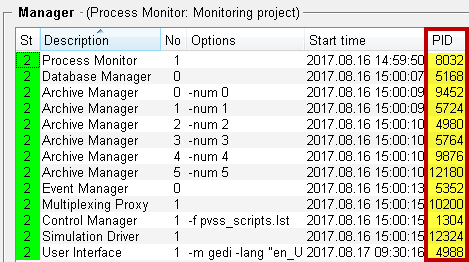

Figure: WinCC OA console and process IDs of managers

Note:
The function can only be used on a local computer. A remote UI cannot query the PMON of a server. The function does not work if WinCC_OA has been started as service. In cannot query the PMON of a server. The function does not work if WinCC_OA has been started as service. In this case, use pmon_query with the command MGRLIST and the sub command STATI. See chapter Details on the Pmon.

In the following example, the names as well as the process IDs of WinCC_OA managers are returned and output.

  1. main(mapping event)
{
  string pName;
  int i, pID;
  for (int i = 0; i < pmonGetCount(); i++)
  {
   pID   = pmonGetPID(i);
   pName = pmonGetName(i);
   DebugN("Manager name: ", pName, "Process ID of the manager:", pID);
  }
 }

The function outputs the names as well as the process IDs of the managers as follows:

WCCOAui2:["Manager name: "]["WCCILpmon"]["PID:"][8032]

WCCOAui2:["Manager name: "]["WCCILdata"]["PID:"][5168]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][9452]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][5724]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][4980]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][5764]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][9876]

WCCOAui2:["Manager name: "]["WCCOAvalarch"]["PID:"][12180]

WCCOAui2:["Manager name: "]["WCCILevent"]["PID:"][5352]

WCCOAui2:["Manager name: "]["WCCILproxy"]["PID:"][10200]

WCCOAui2:["Manager name: "]["WCCOActrl"]["PID:"][1304]

WCCOAui2:["Manager name: "]["WCCILsim"]["PID:"][12324]

WCCOAui2:["Manager name: "]["WCCOAui"]["PID:"][4988]

Assignment

PMON functions.

Availability

UI
