Certificate

Certificate tab that allows to define a client-side certificate that is be used for the communication with the MQTT broker.

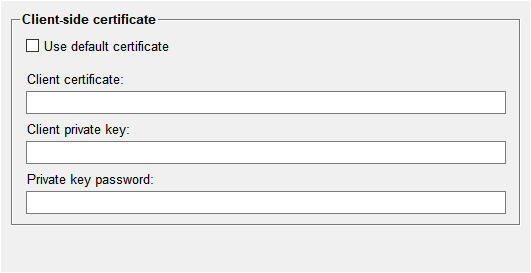

Client-side certificate

Use default certificate: Defines if the WinCC OA default certificate should be used.
Client certificate: Path to the client certificate that should be used.
Client private key: The client key that should be used.
Private key password: Password of the client certificate. Only required if a password has been defined for the used certificate.
