WinCC OA Configuration

Important: The driver/publisher follows the protocol standard. For specific settings, see the documentation of the respective vendor.

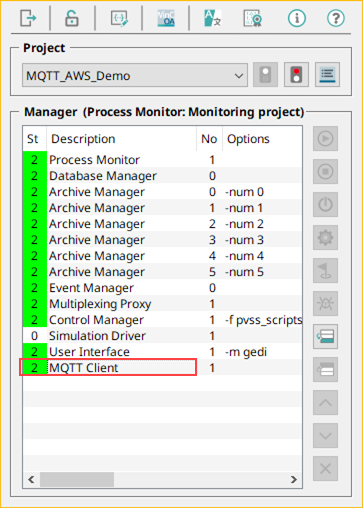

Start your WinCC OA project and an MQTT Driver instance:
In the WinCC OA GEDI open the MQTT client via System Management > Driver > MQTT Client

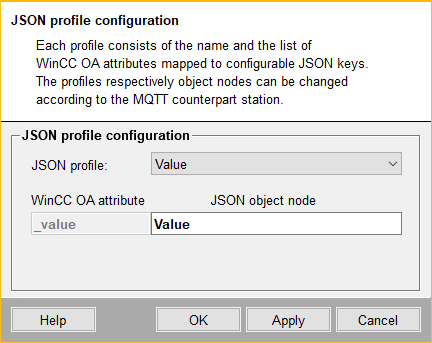

Use the following dialog to specify the data structure of your topics. To keep it simple just click on OK:
Now create a connection and set the correct parameters.

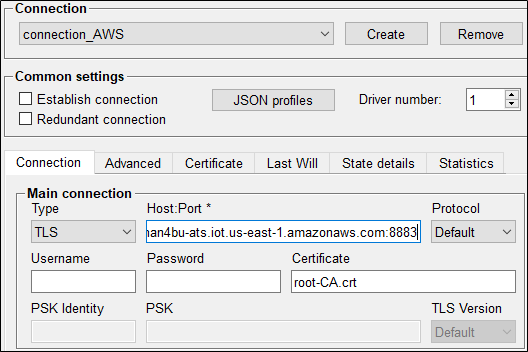

Connection Tab

Host:Port*: contains the URL provided by AWS and the TLS-Port 8883 separated by a colon.
Certificate: root-CA.crt (for root-CA.crt - see the end of the chapter AWS Broker Configuration):

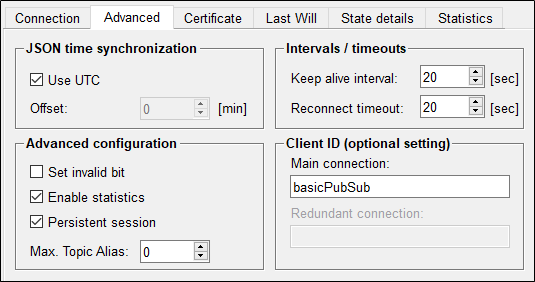

Advanced Tab

For AWS IoT Core the Client ID must be set. The default Client ID is basicPubSub:

Certificate Tab

Client certificate: WCCOA_Thing.cert.pem - see chapter Panel for SSL Host Certificates.
Client private key: WCCOA_Thing.private.key - see chapter Panel for SSL Host Certificates:

Copy Certificates to the WinCC OA project

Create the directory structure data/mqtt/cert if it does not exist yet.
Then copy the files root-CA.crt, WCCOA_Thing.cert.pem and WCCOA_Thing.private.key to the newly created directory:

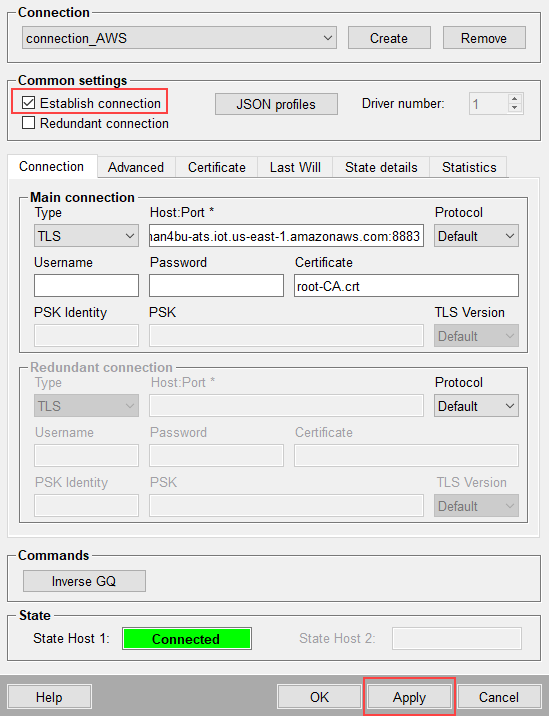

Establish a Connection

Enable the check box Establish connection and click on Apply.
