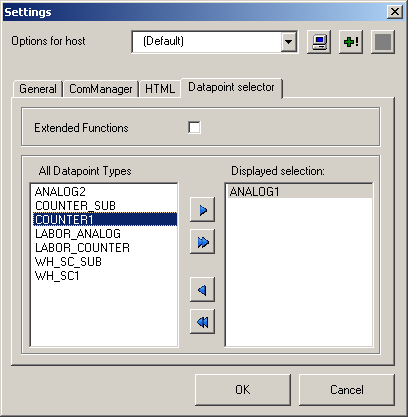

Datapoint selector

In this tab, you can adjust the settings for inserting datapoints into a template.

With the checkbox "Extended functions" you can specify to which extend functions should be available for inserting datapoints into a template (menu optionTemplate/Insert DP,for further informationsee also Adding a datapoint).

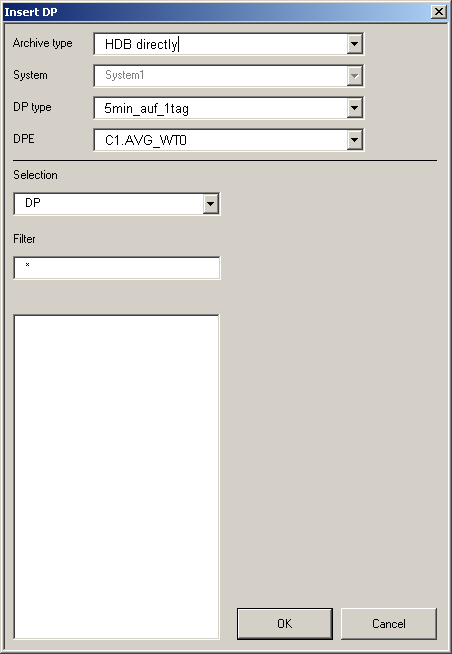

If you select the "Extended functions", the following functions are available:

Otherwise, the panel will look like this:

Select datapoints

In this section, you can select which datapoint types can be used in a template.

"All Datapoint types" lists all available datapoint types. The selected datapoint types are listed in "Displayed selection" and will be available for adding data points in a template.
