ULC UX Widget

The ULC UX widget shows predefined panels via a ULC UX-connection.

CAUTION:
Each ULC UX Widget used in the Dashboard needs a separate ULC UX License. This means that 2 ULC UX Widgets need 2 ULC UX licenses in addition to the dashboard license.

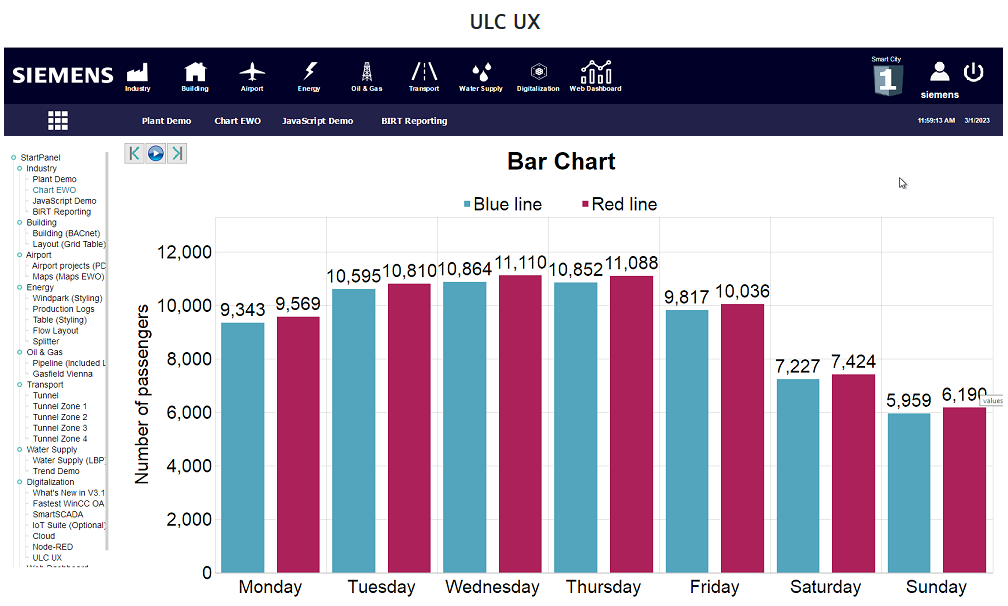

Figure 1. ULC UX widget

Settings

The ULC UX Widget can have the custom appearance settings of custom title, colors and controls.

Content

The ULC UX widget you can either Use Default Panel, which is the configured ULC UX default panel, or Choose Custom Panel. The custom panel can be selected from all panels within the project using the panel selector that pops up from the search icon.

Advanced

The default host for the ULC UX widget is the same as the host for the Dashboard itself. This can also be switched to a User-Defined Host, e.g.: a remote web server.

Note:
The UI arguments for the ULC UX widget within the Dashboard can be set with the config entry [ulcUX] dashboardUiArguments. This is independent of the arguments set for the standard ULC UX.
