"xArray"

Additional data for the one-dimensional array. The xArray shows additional information for the X axis.

Synopsis

setValue(string shape, "xArray", dyn_float DataX, dyn_string Color, dyn_string Label);

getValue(string shape, "xArray", dyn_float &DataX, dyn_string &Color, dyn_string &Label);

shape.xArray(dyn_float DataX, dyn_string Color, dyn_string Label);

Parameters

Parameter Description
shape Name of the object
DataX X values
Color Array containing the color strings
Label Array containing the labels

Description

This attribute can be used to show additional information data in the one-dimensional array. The xArray shows additional information for the X axis. The values are passed in the array "DataX", the associated colors and labels in the arrays "Color" and "Label".

Example

main()
{
  shape bt=getShape("BAR_TREND1");
  int i, j;
  float xRange;
  dyn_float x;
  dyn_string color, ident;
  //Define X- and Y-axis of the bar trend
  bt.yOrigin=BAR_BOTTOM;
  bt.yCenter=0;
  bt.yRange=50;
  bt.yStep=5;
  bt.yPrec=0;
  bt.xOrigin=BAR_LEFT;
  //Determine x, color and ident
  getValue(bt, "xRange", xRange);
  for(i=1; i<=xRange; i++)
  {
    x[i+1]=x[i]+1;
    if(i%2==0)
      color[i]="Blue";
    else
      color[i]="Green";
    if(i%6==0)
    {
      j=x[i];
      ident[i]=j;
    }
    else
      ident[i]="";
  }
  //Setting the values
  setValue(bt, "xArrayShow", 1);
  setValue(bt, "xArray", x, color, ident);
  setValue(bt, "xArrayHeight", 20);
  setValue(bt, "xArrayGrid", 1);
  // Update bar trend
  setValue(bt, "flush");
}

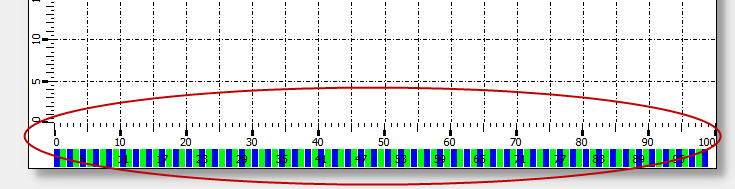

Figure 1. The blue-green one-dimensional array from the example above is shown.

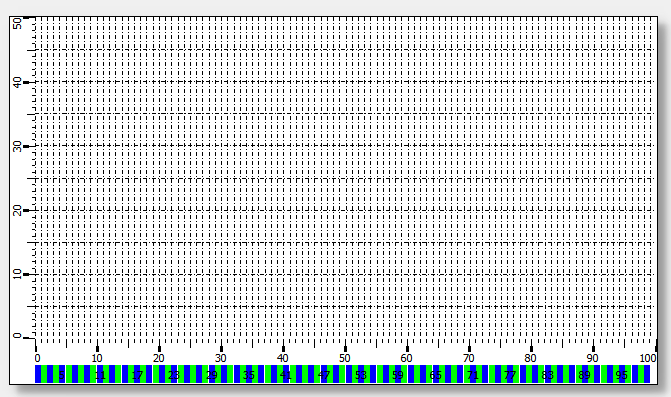

Figure 2. The white-green one-dimensional array as well as the grid is shown

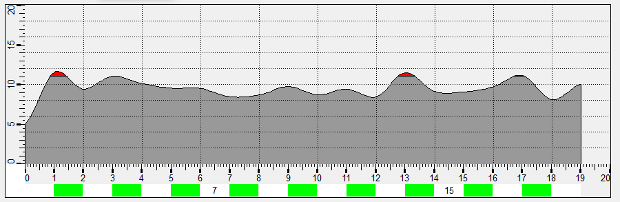

Figure 3. The white-green one-dimensional array is shown. See wincc_oa_path/panels/examples/

Assignment

Bar trend
