"areaMaximumTimeSpan"
Can be used to set the maximum time span that should be displayed inside of the trend area.
Synopsis
trendObj.areaMaximumTimeSpan(int area, time span);
getValue(trendObj, "areaMaximumTimeSpan", int area, time span)
Parameter
| Parameter | Description |
|---|---|
| trendObj | Trend for which the attributed should be get |
| area | Area ID |
| span | maximum time span in seconds that should be displayed |
Description
The attribute allows to define the maximum time span that can be displayed inside of the trend area. By default no limit is given (span = 0).
EXAMPLE
The following example sets the maximum time span limit to 1 hour.
main()
{
TREND1.areaMaximumTimeSpan(0,3600);

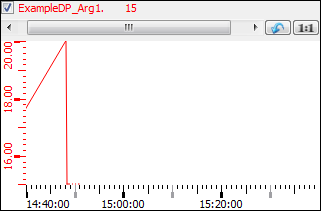

}A maximum time span of 1 hour is displayed (in this case from 14:40 to 15:40).
Assignment
Trend
