Trend with data from MySQL

[Nikolay]

Dear colleagues, Hello again.
We have a MySQL database that stores analog values with timestamps. It is necessary to implement trends for these data sets, but the trouble is that the trends in WinCC OA are bound only to DataPoints. Please help, how should we be?

[Andorhal]

Hello Nikolay.

Depends on the level of integration you want to achieve.
You could use CONTROL-ADO to import the values (see product help for details).

You could also use BIRT inside a Webview EWO , this would allow for a (even combined) view on your internal OA data + your data in the MySQL (see product help for further details on BIRT).
You can set a refresh intervall on the BIRT page, this is no full substitute for live trending though.

Best regards,
Robert

[leoknipp]

With the CTRL-ADO functions you read data from the database.
By using the trend attribute "curveValues" you can then show these values in a trend curve.
There is no need to write the information to DP elements to be able to show them in a WinCC OA trend.

Best Regards
Leopold Knipp
Senior Support Specialist

[Nikolay]

Thank you all a lot of help! =)

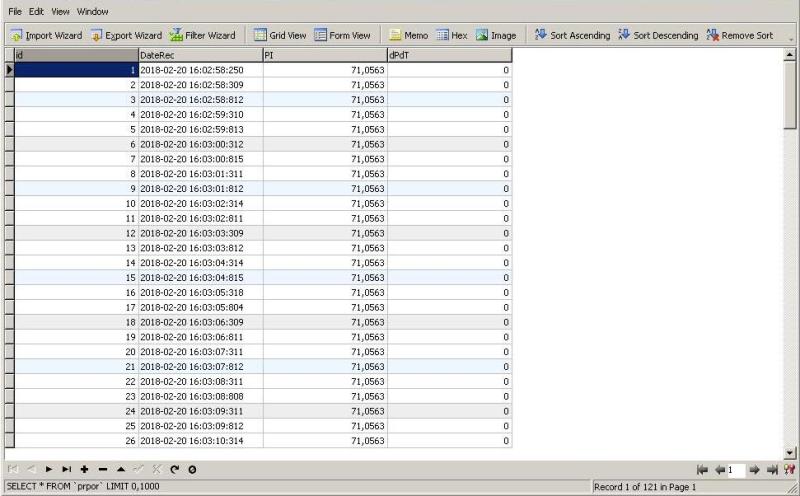

That's what I got, maybe someone will be useful.

Code: Select all

int rc;
dbConnection conn;
dbCommand cmd;
string sql;
dbRecordset rs;
dyn_anytype data;
float PI, dPdT;
time DateRec;
bit64 stat = 15;
rc = dbOpenConnection ("driver = QMYSQL; server = localhost; uid = root; pwd =; database = test; port = 3306;", conn);
dbOpenRecordset (conn, "SELECT * FROM prpor", rs);
     while (! dbEOF (rs)) {
     dbGetRecord (rs, data);
     DateRec = data [2];
     PI = data [3];
     dPdT = data [4];
     TREND3.curveValue ("# 1_1", PI, DateRec, stat);
     TREND3.curveValue ("# 1_2", dPdT, DateRec, stat);
     //DebugN (DateRec + "-" + PI + "-" + dPdT);
     dbMoveNext (rs);
}
dbCloseRecordset (rs);
dbCloseConnection (conn);
