Hello,
Is there any way to import DWF/ DXF file in WinCC OA? I would like to use this functionality to import single line diagram of electrical system in WinCC OA project.
Thanks in advance.
Best Regards,
Amit Golhani
DXF file import
- leoknipp
- Posts:2928
- Joined: Tue Aug 24, 2010 7:28 pm
Re: DXF file import
Hello,
there is no possibility to load directly a DXF-file in WinCC OA.
If you want to insert the DXF-file as background picture of fill pattern for an object you can convert it into a graphics format which can read by WinCC OA.
Best Regards
Leopold Knipp
Senior Support Specialist
there is no possibility to load directly a DXF-file in WinCC OA.
If you want to insert the DXF-file as background picture of fill pattern for an object you can convert it into a graphics format which can read by WinCC OA.
Best Regards
Leopold Knipp
Senior Support Specialist
- Heinrich
- Posts:22
- Joined: Wed Mar 23, 2011 11:27 am
Re: DXF file import
Hi,
we made a customized dxf import. I presented a project on User Day 2010 in Vienna.
Please look at:
https://portal.etm.at/index.php?option= ... &Itemid=81
http://www.etm.at/success_stories/Succe ... BAS_EN.pdf
http://www.elbas.de/leitsysteme.html
Please feel free to contact me.
Best regards
Uwe Heinrich
Department ELBAS, Section Studies and Development
SIGNON Germany GmbH, Dresden
we made a customized dxf import. I presented a project on User Day 2010 in Vienna.
Please look at:
https://portal.etm.at/index.php?option= ... &Itemid=81
http://www.etm.at/success_stories/Succe ... BAS_EN.pdf
http://www.elbas.de/leitsysteme.html
Please feel free to contact me.
Best regards
Uwe Heinrich
Department ELBAS, Section Studies and Development
SIGNON Germany GmbH, Dresden
- amitgolhani
- Posts:41
- Joined: Thu Apr 10, 2014 10:32 am
Re: DXF file import
Hello Uwe,
I am interested in getting more details of dxf import in WinCC OA. Would it be possible for you to share some sample project or documents related with dxf import?
Best Regards,
Amit Golhani
I am interested in getting more details of dxf import in WinCC OA. Would it be possible for you to share some sample project or documents related with dxf import?
Best Regards,
Amit Golhani
- Heinrich
- Posts:22
- Joined: Wed Mar 23, 2011 11:27 am
Re: DXF file import
Hello Amit,

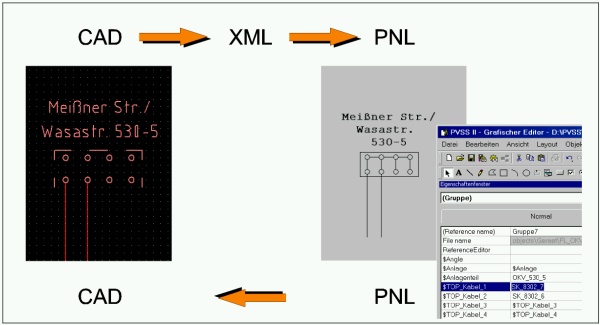

the CAD Converter enables to read DXF files with lines and polylines and convert it in PNL/XML files for WinCC OA.
A batch process enables the easy import of XML files. The result of the batch is one or more PNL/XML-Files.
But that's not all. With the CAD system (f. i. AutoCAD or ProgeCAD) you can give every line or polyline a name (i. e. "Cable_378").
This name will be set in the XML and PNL file.
Further our CAD converter enables the interpretation of different CAD layers. Each layer produces a separate XML/PNL-file.
Special shapes and layers of polylines enable the assignment to a special WinCCOA object. A panel reference to the special WinCC OA object will be created. Dollar parameters enables to set the name/data from the CAD file into the WinCC OA object.
The CAD converter can/must be adapted to your special requirements. As a result you have finished PNL files - no manual work required!
Please send me your requirements and maybe an CAD example by mail.
Best regards
Uwe Heinrich
Department ELBAS, Section Studies and Development
SIGNON Germany GmbH, Dresden
the CAD Converter enables to read DXF files with lines and polylines and convert it in PNL/XML files for WinCC OA.
A batch process enables the easy import of XML files. The result of the batch is one or more PNL/XML-Files.
But that's not all. With the CAD system (f. i. AutoCAD or ProgeCAD) you can give every line or polyline a name (i. e. "Cable_378").
This name will be set in the XML and PNL file.
Further our CAD converter enables the interpretation of different CAD layers. Each layer produces a separate XML/PNL-file.
Special shapes and layers of polylines enable the assignment to a special WinCCOA object. A panel reference to the special WinCC OA object will be created. Dollar parameters enables to set the name/data from the CAD file into the WinCC OA object.
The CAD converter can/must be adapted to your special requirements. As a result you have finished PNL files - no manual work required!
Please send me your requirements and maybe an CAD example by mail.
Best regards
Uwe Heinrich
Department ELBAS, Section Studies and Development
SIGNON Germany GmbH, Dresden
- Attachments
-
