How to use simulation driver?

Post by **jiaofueric** » Mon May 11, 2020 9:50 am

These days, we want to do a training about wincc oa

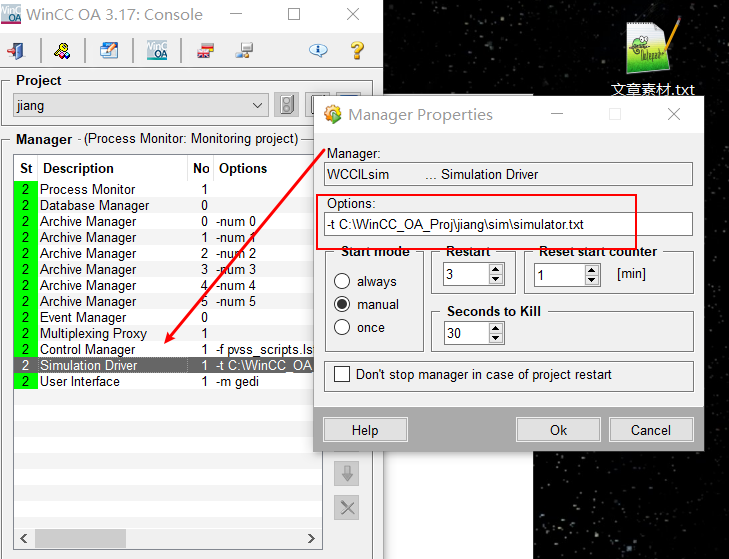

but i cant make the simullation driver module module work

Here are my steps

1)

2)

3)

4)

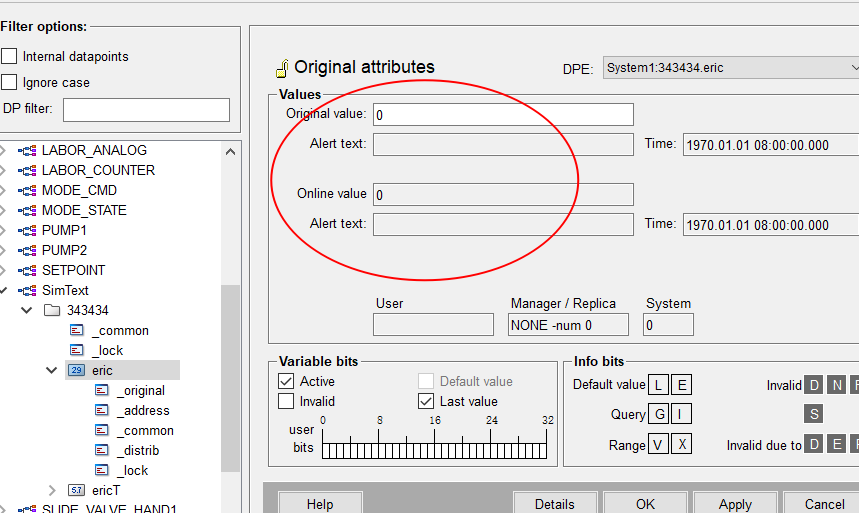

no data return ...

Post by **leoknipp** » Mon May 11, 2020 10:42 am

In your posting the images are missing.
Maybe you can make a document with the description and screenshots and attach it.

What do you want to do with the simulation driver?

Best Regards
Leopold Knipp
Senior Support Specialist

Post by **jiaofueric** » Tue May 12, 2020 1:58 am

These days, we want to build a demo case for customer

but i cant make the simullation driver module work,

The detailed steps are in the attachment

Thanks.
Regards.
Eric

Post by **jiaofueric** » Tue May 12, 2020 1:59 am

thank you i will do it again

Post by **leoknipp** » Tue May 12, 2020 8:48 am

There seem to be several problems.

At "Direction" you have selected "AM_Output" which sounds like an output and not an input address.

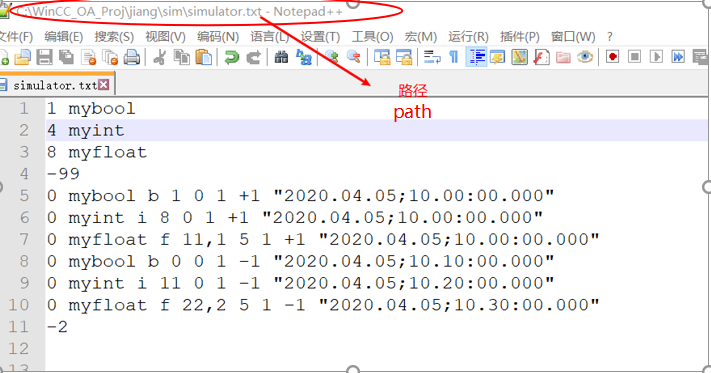

In the simulation file you have defined times which shall be used when setting a value. Also you have used the option "-2" which defines that the values will be set in a loop. You have to take into account that new original values with a defined time can only be set if the time is equal or newer to the time which is already saved at the dp element. When trying to set a value with an older time the time will be corrected and the statusbit _stime_inv will be set.

To start the simulation you have to set the dp element _Simulator_<num>.Signal to 1. If the value is set again the simulation is stopped.
In the log file for the simulator you will find information when the simulation is stopped and started.

Best Regards
Leopold Knipp
Senior Support Specialist
