msgCatEditor()

The function opens the catalog editor.

Synopsis

int msgCatEditor(string catalog);

Parameter


Parameter	Description
catalog	The name of the catalog file that is created.

Return value

The function returns 0 if it was successfully executed and in case of errors -1.

Description

The function opens the catalog editor and creates a catalog file with the specified name. Entries can be added and saved in the editor. The file is saved in the WinCC_OA_Proj/msg/[language] directory.

main(mapping event)
{
  string cat = "_errors";
  int i = msgCatEditor(cat);
  DebugN(i, "Catalog:", cat);
}

The example opens the catalog editor and creates a catalog file with the name _errors. Rows can be added via the button. Row below the selected row via the button. Save the file via the button.

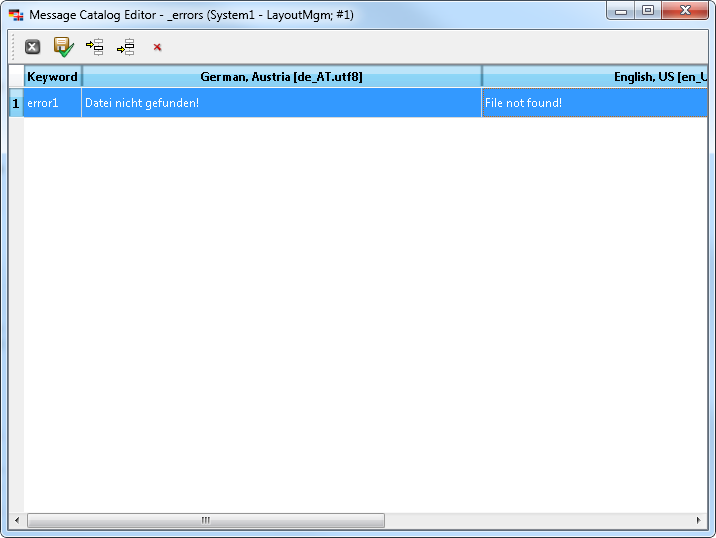

Figure: Message catalog editor

Assignment

Graphics functions
